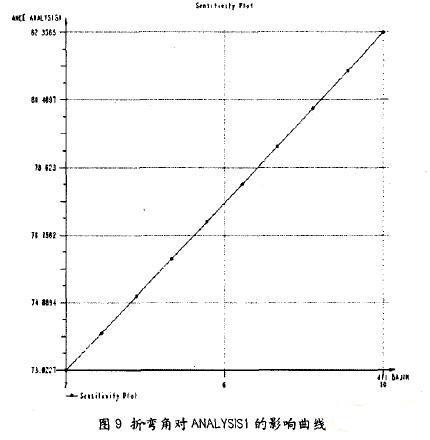

Figure 9 shows the effect of the bending angle on ANALYSIS 1. The bending angle varies from 2mm to 1Omm, and the ANALYSIS 1 increases from 73mm to 82.36mm.
5 feasibility / optimization analysis

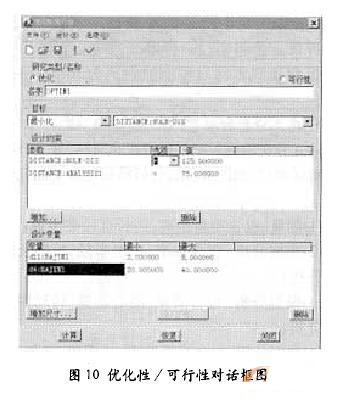

For the sensitivity analysis calculation, the parameters and their values ​​to be set in the dialog box are shown in Figure 10.
6. Optimization results
Through optimization calculation, the bend line angle value is 33.748 0; the bend angle size is 6.291 mm.
Third, the conclusion
In the Pro/ENGINEER model, including geometric features, datum features, control curve features, analysis features, and so on. There are parent/child relationships and prioritization relationships between all features. To express design intent more clearly, you can manually add "relationships" between features (called Relation in Pro/ENGINEER). There are two restrictions on creating a Relation: a parent feature cannot reference a child feature variable; a reference to a feature variable can only be referenced forward.
Behavioral modeling techniques break through these two limitations, and if used flexibly in design, you can get very satisfactory results.
